Material:Rubber , NBR, HNBR, Silicone/ NBR,PTFE, Nylon
MOQ:1 Set
Payment Term:T/T, Credit card, L/C
Delivery Term:Container shipment, Air freight, Express
Packing:Standard Packing

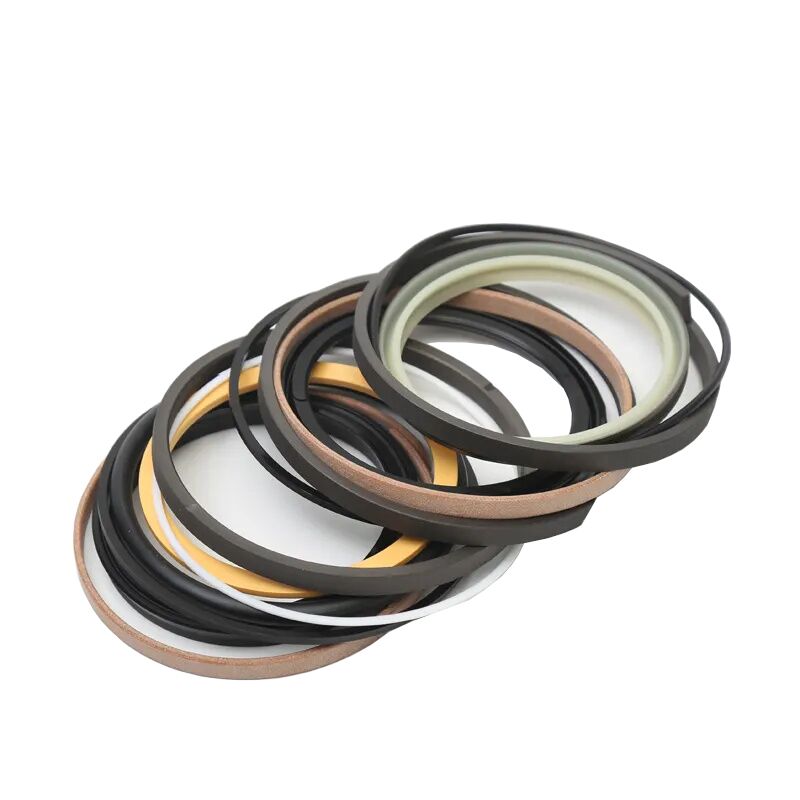

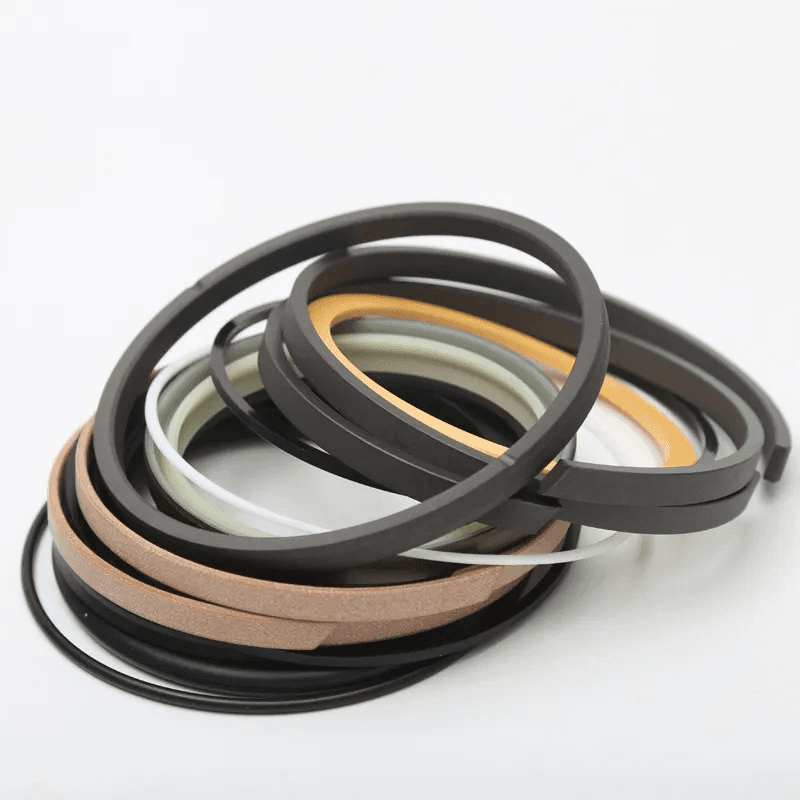

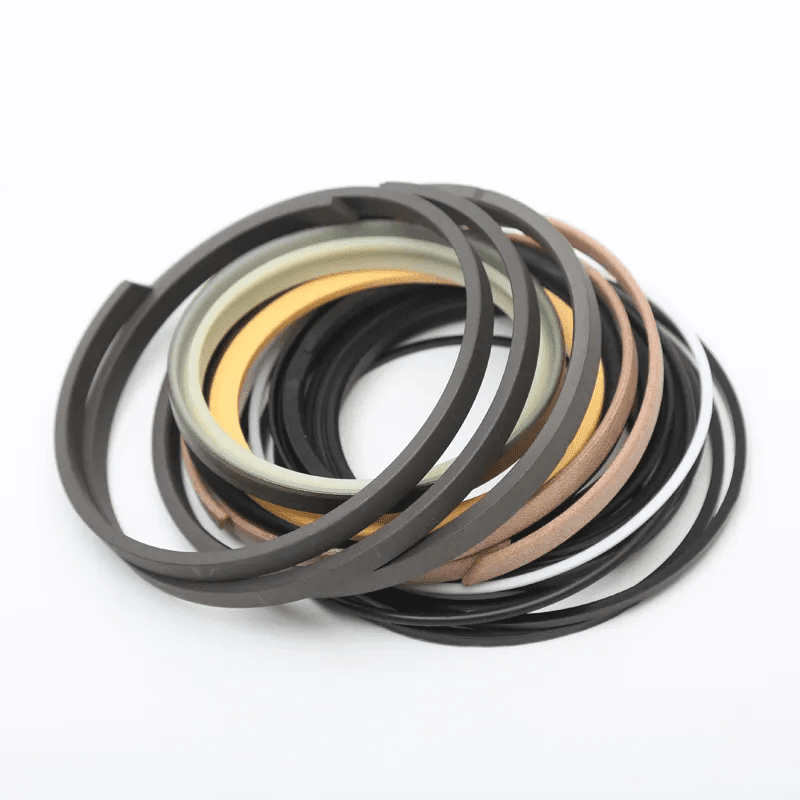

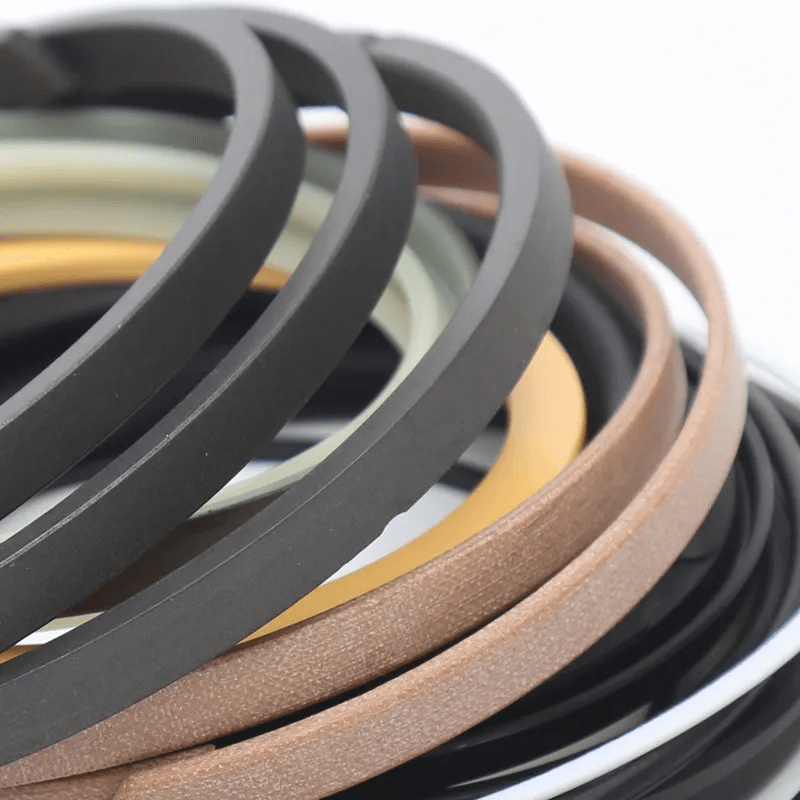

Excavator Hydraulic Seal Kit
Description
The excavator hydraulic seal kit is a crucial component in the hydraulic system of an excavator. It is designed to prevent hydraulic oil leaks, maintain pressure levels, and protect the internal components from contaminants. Made from high-quality rubber or other synthetic materials, the oil seal fits snugly into the hydraulic system and can withstand high pressure and temperature fluctuations. In addition to preventing oil leaks, the excavator oil seal plays a critical role in protecting the hydraulic system from damaging contaminants such as dirt and debris. Without the excavator hydraulic seal kit, the excavator’s performance could be severely impacted, leading to costly repairs and downtime.
About Hydraulic Seal Kit Materials
Rubber materiaI |
Hardness |
Temperature |
Properties |
|
Nitrile/clear rubberNBR
|
Standard 70 ° Can be customized 40-90
|
Limit temperature -40 ℃-120 ℃
|
Oil resistance and wear resistance
|
|
Fluorine glueFKM/VITON
|
Standard 75 ° Can be customized 50-90
|
Limit temperature -40 ℃-240 ℃
|
High temperature resistance, oil resistance, chemical resistance
|
|
Silica gelSIL/VMQ
|
Standard 70 or 60 can be customized 40-90
|
Limit temperature -60 ℃-250 ℃
|
High temperature resistance, low temperature resistance, non-toxic and tasteless
|
|
EPDM
|
Standard 70 ° Can be customized 40-90
|
Limit temperature -40 ℃-150 ℃
|
Strong acid and alkali resistance, 150 ° water vapor resistance Anti-aging and ozone resistance
|
|
HNBR
|
Standard 70 ° Can be customized 40-90
|
Limit temperature -40 ℃-120 ℃
|
Wear resistance, oil resistance, refrigerant resistance (air conditioner), polar solvent
|
|
NeopreneCR
|
Standard 70 ° Can be customized 40-90
|
Limit temperature -40 ℃-120 ℃
|
resistance, good deformation resistance
|
|
FVMQ
|
Standard 70 ° Can be customized 45-70
|
Limit temperature -60 ℃-177 ℃ High temperature resistance can reach 232 ℃ in dry environment
|
Oil resistance, acid and alkali resistance, heat resistance
|
|
Perfluoroether rubberFFKM
|
Standard 75 ° Can be customized 50-90
|
Limit temperature -40 ℃-90 ℃
|
Wear resistance, high pressure resistance, aging resistance, hydrolysis resistance
|
|
PU
|
Standard 70/80/90 can be customized 60-90
|
Generally, it is -80 ℃-260 ℃ and can reach -190 ℃-260 ℃
|
Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance and aging resistance,
|
|
TeflonPTFE/F4
|
Generally 55-65
|
Generally, it is -80 ℃-260 ℃ and can reach -190 ℃-260 ℃
|
Corrosion resistance, wear resistance, high temperature resistance, low temperature resistance and aging resistance,
|
| For Daewoo | For Kato | For Caterpillar | For Hitachi | For Kobelco | For Komatsu | For Sumitomo |
| DH55 | HD250 | CAT312 | EX60-7 | SK60-7 | PC40-8 | SH55 |
| DH60 | HD450 | CAT320C | EX120-2 | SK100-5 | PC60-7 | SH60 |
| DH80 | HD512 | E200B | EX120 | SK200-1 | PC100-6 | SH120A1 |
| DH220-5 | HD700-7 | E320B | EX200-1 | SK200-3 | PC120-6 | SH120A2 |
| DH225-7 | HD800 | E320D | EX200-2 | SK200-5 | PC130-7 | SH120A3 |
| … | HD820-3 | … | EX200-3 | SK200-6 | PC200-1 | SH120 |
Tag: Arm seal kit,Boom seal kit,Bucket seal kit,Excavator oil seal
Feature
The Excavator Hydraulic Seal Kit is made from high-quality materials that can withstand wear and tear. It fits snugly into the hydraulic system, preventing oil leaks and protecting against contaminants.
