Excavator General Purpose bucket is made of standard plate thickness, same as the original factory. Q355b steel has been used for the whole body of the excavator scoop, instead of just the wearable parts. The GP bucket is available for machine weights from 3T to 80T. It’s tough and light.

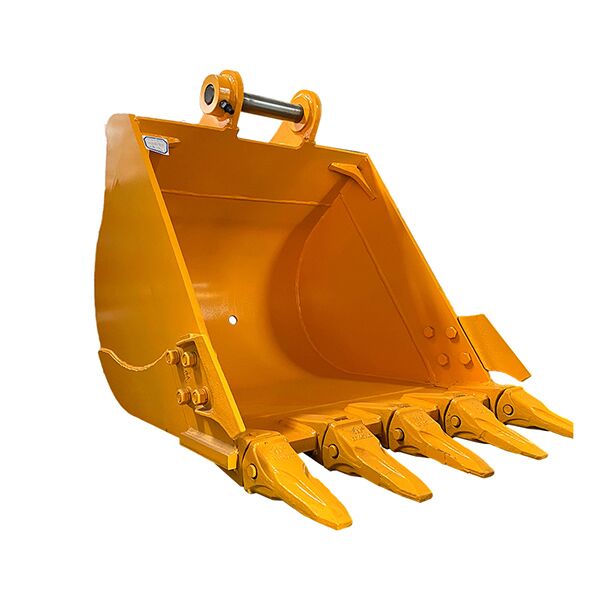

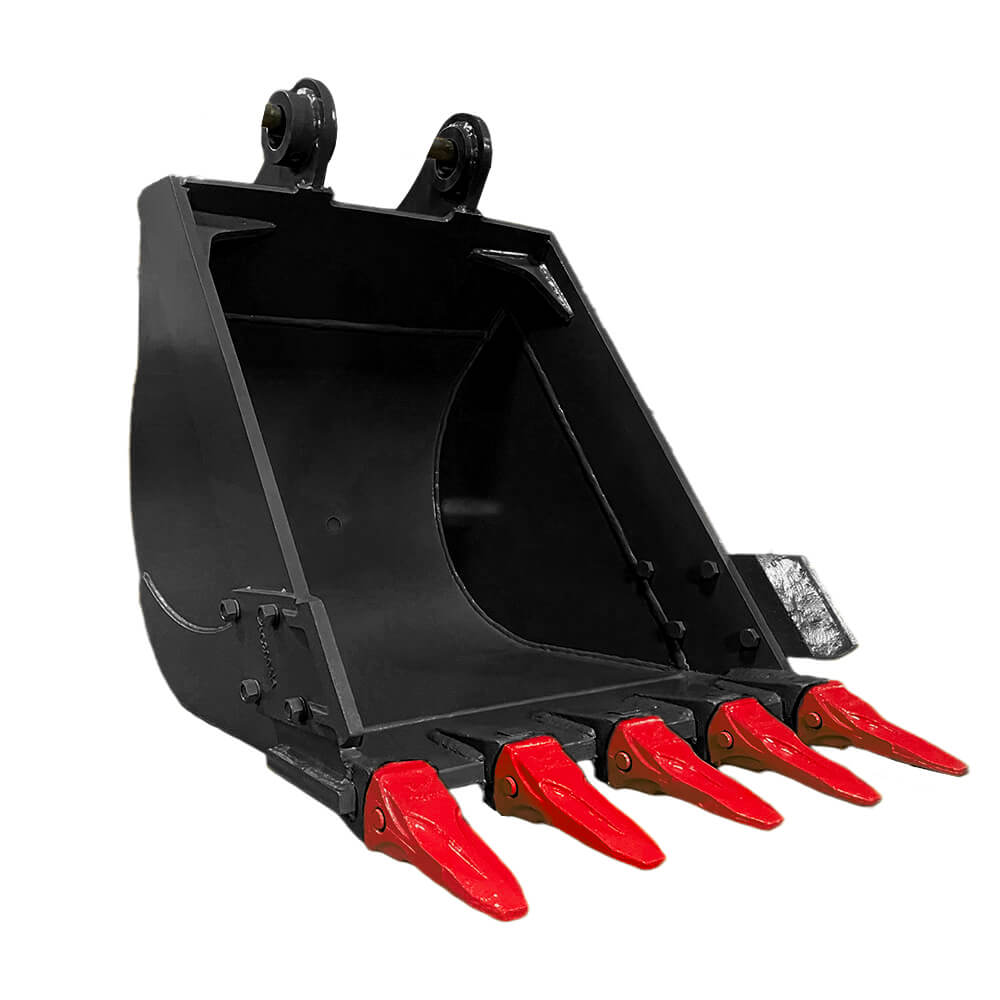

General Purpose Bucket
Description
Look no further than the Excavator General Purpose Bucket, a versatile and essential tool designed to meet the demands of various construction, excavation, and landscaping projects.
General Purpose Bucket apply to light operation task, such as digging and loading hard soil or stones nixed with the soft soil.
Mainly used for excavation and sand, gravel and soil and other light load operating environment.
Key Features for Excavator General Purpose Bucket:
1. Multi-Purpose Performance:
Our Excavator General Purpose Bucket is engineered to excel in multiple applications. From digging and grading to trenching and material handling, this bucket does it all with precision and ease.
2. Robust Construction:
Crafted from high-quality, wear-resistant materials, this bucket is built to withstand the harshest conditions. Its durability ensures a long service life, even when tackling tough, abrasive materials.
3. Optimized Design:
The bucket’s streamlined design enhances its digging and loading capabilities, allowing you to work efficiently and effectively. It’s designed to scoop up more material with each pass, reducing your overall project time.
4. Easy Attachment:
Attaching and detaching the Excavator General Purpose Bucket is a straightforward process. With compatibility for various excavator models and quick-coupler systems, you’ll spend less time on setup and more time on actual work.
5. Precision Control:
Experience enhanced control and precision thanks to the bucket’s well-balanced design. Whether you’re grading a surface or excavating a precise trench, you’ll appreciate the accuracy this attachment provides.
6. Reduced Downtime:
We understand that time is money in the construction industry. That’s why our bucket is engineered for minimal maintenance and maximum uptime, ensuring you’re always ready to tackle the next job.
Excavator General Purpose Bucket General Arrangement Drawing
| Capacity(m³/cu.yd) | 0.8/1.04 | 1/1.3 | 1.2/1.56 | 1.5/1.96 | 1.8/2.35 | 2/2.6 | 2.5/3.26 | 3/3.9 | 4/5.23 |
| Length(“) | 42.5 | 46.5 | 46.5 | 51.2 | 51.2 | 53.1 | 59.1 | 66 | 67.3 |
| Width(“) | 39.4 | 45.3 | 49.2 | 51.9 | 59.8 | 59.8 | 61 | 62.2 | 66.9 |
| High(“) | 27.6 | 29.9 | 31.5 | 33.9 | 35.8 | 38.6 | 40.9 | 44.5 | 53.1 |
| Teeth(Optional) | PC200 | PC200 | PC200 | PC300 | PC400 | PC400 | PC400 | PC650 | PC650 |
| Lip(“) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
High-quality materials
| Material | Code | Related Chemical Composition | Hardness(HB) | Extension(%) | Drag and extension intensity (N/mm2) | Bend Intensity (N/mm2) | ||||
| C | Si | Mn | P | S | ||||||
| Alloy | Q355B | 0.18 | 0.55 | 1.4 | 0.03 | 0.03 | 163-187 | 21 | 470-660 | 355 |
| Chinese High-Strength alloy | NM360 | 0.2 | 0.3 | 1.3 | 0.02 | 0.006 | 360 | 16 | 1200 | 1020 |
| High-Strength alloy | HARDOX-500 | 0.2 | 0.7 | 1.7 | 0.025 | 0.01 | 470-500 | 8 | 1550 | 1300 |
Feature
1. Optimized profile for better filling & dumping.
2. Could be designed to fit your unique working purpose specifically.
3. Tech-team keep the GP bucket design upgrading routinely
